Author Topic: Elm Holmegaard build along... (Read 17057 times)

Dano · « **Reply #40 on:** December 14, 2004, 06:25:00 PM »

I can see how the tiller process would be tuff, tryin to keep those tips stiff looks like the key.

mich-mtnman · « **Reply #41 on:** December 14, 2004, 07:29:00 PM »

thats some cool pics mickey !
im waiting to see more progress from sparky.

Sparky · « **Reply #42 on:** December 14, 2004, 08:17:00 PM »

Sorry nuttin to add tonite...just got home a min ago. Tough day at da salt mine today "[dead]"

Mickey, thanks bud...what a neat bow. I like the nocks. From what I have read, those are period correct for that bow. Tim did a bang up job.
My dimensions are close to his with a few exceptions. I have 1" fades at da grip and the wide part will be 1 15/16 tapering to 1 5/8 over 13"...then the outer fades to 1" gradual taper to 1/2" over 16" at the nocks.
I sure appreciate the dimensions. I printed them off and stuck them in my book 'o' bow stuff... :D
How does the bow shoot Mickey...is it dead in the hand as legacy predicted..LOL Thanks again Bro.
I am still pondering the wind check..have several options at hand. Thanks to all following along for the nice comments. Dave, your threads on eyeballin' tiller have helped me more than you will ever know. Ya even got pop pokin his pinky out...LOL
Sorry so long winded...maybe I'll get a chance to get at her tomorrow.

Sparky

Sparky · « **Reply #43 on:** December 14, 2004, 08:21:00 PM »

Oh..BTW Marvin...yeah I cheated. I used a bandsaw...LOL

Sparky

the Ferret · « **Reply #44 on:** December 14, 2004, 08:34:00 PM »

Spark to tell you the truth I have never even strung the bow. Tim said it has some chrysals (which I couldn't find) so I didn't want to risk breaking it. It is just a valuble piece in my collection.

Bob Barnes · « **Reply #45 on:** December 14, 2004, 11:10:00 PM »

Sparky, I sent you some pics of mine. Heck, it shoots better than I do for sure. I would gladly send it to you for a closer look if ya need it.
Bob

Marvin M. · « **Reply #46 on:** December 15, 2004, 08:27:00 AM »

Don't know that I would call it cheating, just TOOL ENVY on my part. Maybe some day I can justify buying one.

Let's see, "Gee Honey, if I had a band saw I could repair that broken board on the privacy fence!!!" Wonder if that would work?

Linc · « **Reply #47 on:** December 15, 2004, 05:46:00 PM »

Just call me "Power Tool Deprived" :(

Sparky · « **Reply #48 on:** December 15, 2004, 07:38:00 PM »

BOB...WOW!...man you ought to share those with the gang, that is a awesome bow. I love the look of the rawhide...thanks Bro. If you don't mind can you put up some of your dimensions for us to ponder...

I got a lil' bit done tonite...new pics up if ya wanna look. The wind check has all but dissapeared from the tips with a little shaping in that area. It still remains but I believe will dissappear after final shaping of the tips.
I broke out the ol' spokeshave tonite. Lemmie tell ya on white wood straight wood...the curls come off like buttah' as Jawge would say

All for now...Merry Christmas all

Sparky

George Tsoukalas · « **Reply #49 on:** December 15, 2004, 07:50:00 PM »

Hi Sparky. Looks like she's coming along well. Neve did one of those Holmies.
jawge

Bob Barnes · « **Reply #50 on:** December 15, 2004, 08:28:00 PM »

Here's as close as I can get...these bows are a bit difficult for me to measure... LOL. 65" /64" n-t-n...4" grip with 1 1/2" fades...1" wide grip tapering out to 1 3/4" at the fades....14" working limbs that taper from 1 3/4" to 1 1/2", then about a 2" "transition area" from 1 1/2" down to 3/4", and then the last 13" tapers from 3/4" down to less than 3/8" at the tip, which is just 1/2" above the nock. The grip is 1 1/2" thick and tapers to just under 3/4" at the fade, then to 3/8" and then to about 1/4" in the bending limb as it aproaches the thicker tip. The transition to a thicker tip starts in the 2" "transition area" where it goes from about 1/4" to near 3/4" and retains near 3/4" until almost at the tip. I hope this makes some kind of sense.
Bob

DCM · « **Reply #51 on:** December 15, 2004, 08:44:00 PM »

I've heard that said from a lot of folks Sparky. I don't recall having that much trouble with it but I won't do it again. Sherwin Williams Supreme I think. I wish it held up as well on my house. ;-(

Irondog · « **Reply #52 on:** December 15, 2004, 08:48:00 PM »

A simply beautiful bow.

Sparky · « **Reply #53 on:** December 15, 2004, 09:04:00 PM »

Thanks Bob...any chance on a full draw pic

I am interested in the transitional area in the outer limbs. The information I have been able to come up with doesn't address those areas in very much detail. I have came up with what I thought it should look like but it is only a stab in the dark.

Thanks again Bob..I printed your off as well for my goodie book.

Sparky

Bob Barnes · « **Reply #54 on:** December 15, 2004, 09:35:00 PM »

my son took the digital camera on a short trip...may have it back by Friday and I'll get some close ups of the area where the limb changes for you.
Bob

Sparky · « **Reply #55 on:** December 15, 2004, 09:46:00 PM »

Thanks Bud!...is dat a board bow or a stave? I sure like the color of that. Elm takes a stain real good so I hear. BTW do you mind if I send the pics to Meat to add so all can see the bow?

Sparky

Bob Barnes · « **Reply #56 on:** December 15, 2004, 11:42:00 PM »

it's a stave. posting pics is fine.
Bob

Meathook · « **Reply #57 on:** December 16, 2004, 11:52:00 AM »

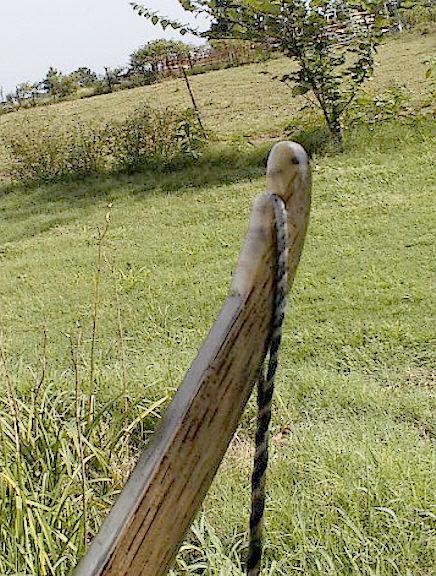

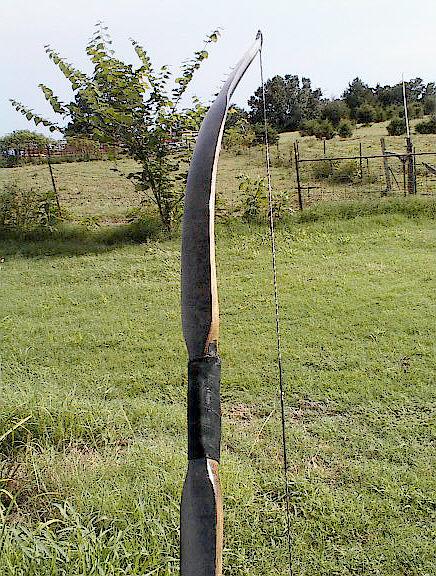

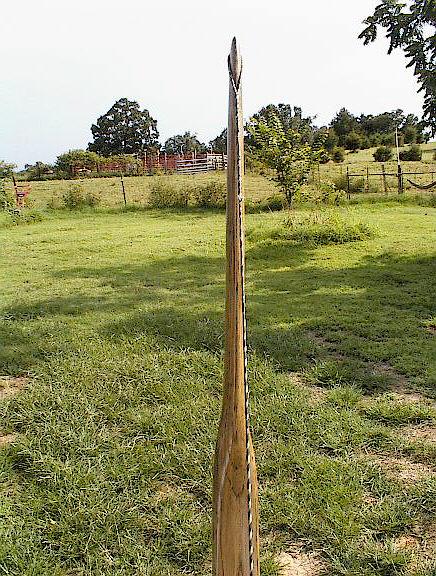

Sparky asked me to post these pics of Bob's bow. Looks pretty sweet to me Bob.

Dano · « **Reply #58 on:** December 16, 2004, 12:59:00 PM »

That is nice Bob, now I understand those dementions better. Nice job.

the Ferret · « **Reply #59 on:** December 16, 2004, 02:05:00 PM »

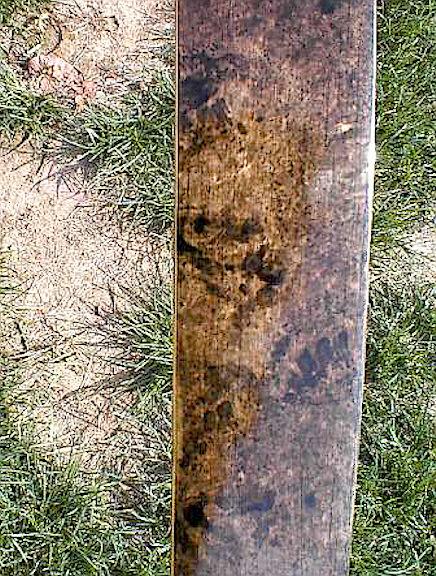

Man, took me awhile to figure out that last pic

LOL
