Author Topic: show me your feather burning shapes, New designs need your opinion Page 1 (Read 337 times)

lpcjon2 · « **on:** January 30, 2012, 08:47:00 AM »

I am going to do some feathers up and was kinda bored with the shapes I have been burning. So can ya show me some of the shapes you do.Thanks Tim

I drew up some possible retro type shapes and would like your opinions.Thanks Tim

Rob DiStefano · « **Reply #1 on:** January 30, 2012, 09:02:00 AM »

for a three fletch, i prefer a big feather with maximum helical. modified shield shape, 5.25" long and a gradual slope from rear to front, for more surface area/steerage.

lpcjon2 · « **Reply #2 on:** January 30, 2012, 09:09:00 AM »

Rob, did you go big due to a heavy head weight?

Rob DiStefano · « **Reply #3 on:** January 30, 2012, 09:40:00 AM »

nothing at all to do with the front end weight. more surface area = better straightening out and steerage.

Charlie Lamb · « **Reply #4 on:** January 30, 2012, 10:22:00 AM »

Ended up with this parabolic shape. Tested until I found one that was very quiet.

Jack Skinner · « **Reply #5 on:** January 30, 2012, 01:47:00 PM »

I make this in every length from 5.5 maxi down to 3 inch for four fletch. As far as stearing for big heads these work fine with 190-250gr heads in the 4 inch three fletch out of my selfbows with no issues. And once down in the 4 inch range nice and quiet. 5.5 maxi can sound like helicopter coming in for landing.

Chromebuck · « **Reply #6 on:** January 30, 2012, 02:09:00 PM »

Jack,

I've wondered about getting a melted build-up from the burners. How do you remove that?

Thanks,

~CB

lpcjon2 · « **Reply #7 on:** January 30, 2012, 02:42:00 PM »

Take a sharp knife and just scrape it across in the direction of the feather.It comes right off

Charlie Lamb · « **Reply #8 on:** January 30, 2012, 03:58:00 PM »

A coarse grit sandpaper works great for removing the charred edge as well and if you do it after you taper the leading edge you can smooth that part a little more.

Overspined · « **Reply #9 on:** January 30, 2012, 04:12:00 PM »

After a few shots the burn is gone.

Wannabe just posted my feather shape in his "pink" thread
http://tradgang.com/noncgi/ultimatebb.php?ubb=get_topic;f=1;t=113411
I get a lot of surface area and a quiet shooting arrow.

Jack Skinner · « **Reply #10 on:** January 30, 2012, 05:17:00 PM »

What the others said it just comes right off. You can just run your fingers down the fletch.

dragonheart · « **Reply #11 on:** January 30, 2012, 10:39:00 PM »

These are high back parabolic 5.25". Touch taller than 3/4" high at the highest point in the back. Straighten out of longbow fast. I use a sanding-pad to remove the black char that is left.

dragonheart · « **Reply #12 on:** January 31, 2012, 06:27:00 AM »

Same shape in the quiver.

lpcjon2 · « **Reply #13 on:** January 31, 2012, 01:14:00 PM »

I made some designs of possible shapes please give your opinions.

Zradix · « **Reply #14 on:** January 31, 2012, 02:43:00 PM »

#1.
Has the most surface area in the back...where it does the most good.

Looks like it will have enough shorter/stiffer support barbs for those taller barbs to keep somewhat quiet.

also...I think it looks the coolest...

#2 ...looks too much like a roughed out moon shape.

#3 I think it would be loud the way the longest barbs don't have much support.

Firemandivi · « **Reply #15 on:** January 31, 2012, 04:06:00 PM »

I have little archery experience but for my high power model rockets that can go up a few miles the best wing shape is the clipped delta, I would think that shape would be the most beneficial for arrows too and out of your three options #1 appears to be the closest to it.

lpcjon2 · « **Reply #16 on:** February 01, 2012, 08:56:00 AM »

Guru · « **Reply #17 on:** February 01, 2012, 06:14:00 PM »

•

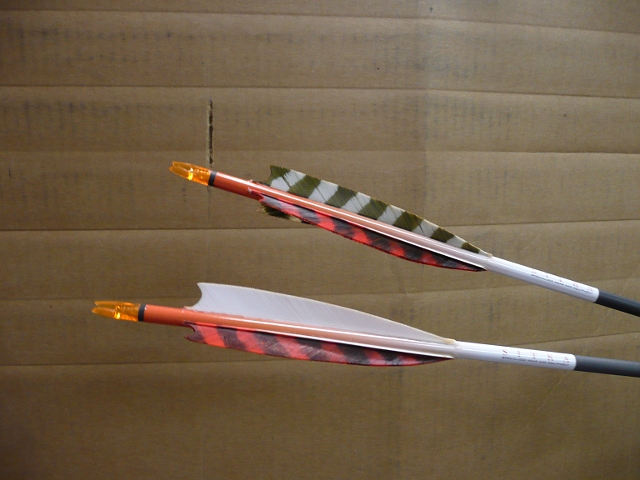

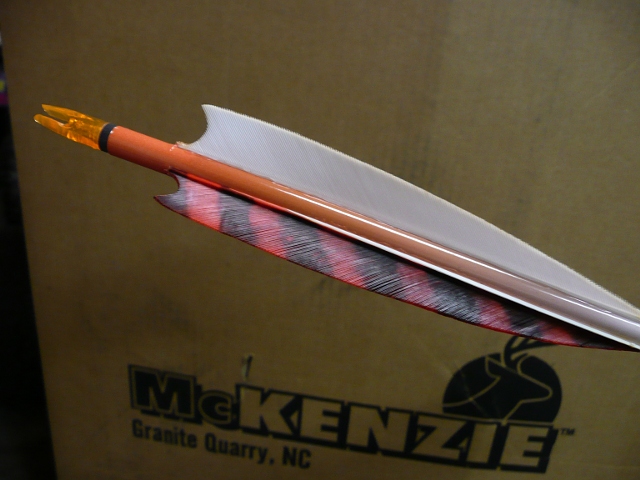

Here's one I came up with, kinda like one of the old Vario Clipper options("Orca" cut I think)...5" long and low profile.

Some will say they are noisy because of the trailing edge...but if they are noisier than any other cut I can't tell.

And the 5-6 deer and 4 hogs I've killed while using these arrows can't argue either

I just think they're kinda cool...

lpcjon2 · « **Reply #18 on:** February 01, 2012, 06:20:00 PM »

I like that cut, did you have to bend it a certain way to accomplish that circular cut, What did you use as a guide?

m midd · « **Reply #19 on:** February 01, 2012, 06:39:00 PM »

Guru, I like that shape.. I cant wait until my burner gets here friday
